DAS, NAS and SAN storage architectures defined



Direct Attached Storage network topology





Network Attached Storage (NAS) topology

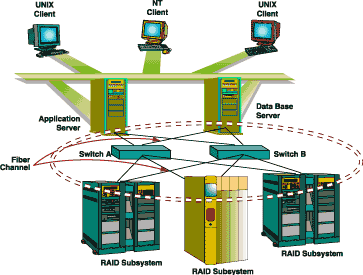

Storage Attached Network network topology



Reference : http://www.storagesearch.com/auspexart.html

Umbraco v4~V6– Query history data by T-SQL

declare @nodeId int
set @nodeid = 1
select DENSE_Rank() OVER (PARTITION BY nodeid ORDER BY updateDate DESC) AS versionNum
,      published
,      documentUser
,      text as 'Name'
,      templateId
,      cmsdocument.alias
,      newest
,      PropertytypeId
,      cmsPropertyType.Name as 'Propertytype Name'
,      dataInt
,      cmsPropertyType.Alias as 'Propertytype Alias'
,      dataInt
,      dataDate
,      dataNvarchar
,      dataNtext
,      updateDate
,      releaseDate
,      [ExpireDate]
from      cmsdocument
left join cmsPropertyData on cmsdocument.versionid = cmsPropertyData.versionid
left join cmsPropertyType on cmsPropertyData.propertytypeid = cmsPropertyType.id
where nodeid = @nodeid

ASP.NET project broken layout on IE11

How to reproduce the problem:

Web Server installed under .NET 4.0 version possible caused IE11 can not recognize User-Agent request header from your web server.

Solution:

Modify or Add file in your web site.  ~\App_Browsers\w3cvalidator.browser.
(File link backup : https://www.dropbox.com/s/85887zvntlxe3fl/w3cvalidator.browser?dl=0)

Read this to get more detail. http://blogs.telerik.com/aspnet-ajax/posts/13-12-19/how-to-get-your-asp.net-application-working-in-ie11

ASP.NET MVC 5 – remove console.log by set compilation to false



In Web.config

<compilation debug="false" targetFramework="4.5">



BundleConfig.cs

if (HttpContext.Current.IsDebuggingEnabled)
{
    BundleTable.EnableOptimizations = false;
}
else
{
    BundleTable.EnableOptimizations = true;
}



JS files
///#DEBUG
console.log(“your debug log here.”);
///#ENDDEBUG



Nice related article about remove console - http://www.elijahmanor.com/grunt-away-those-pesky-console-log-statements/

[Notes] Entity Framework - Code First on SQL Compact/LocalDB

OPTIONS

PM> Install-Package NuSpec
         Powershell cmdlet that makes working with NuSpec files easier!

STEP

1. Select your CodeFirst project , the project should contains class inherit from DBContext class

2. PM> Install-Package EntityFramework
    OR
    PM> Install-Package EntityFramework.SqlServerCompact  (if you use SQL CE)

3. PM> Enable-Migrations
    OR
    PM> Enable-Migrations -Force (To overwrite the existing migrations configuration)

4. PM> Add-Migration Migrations-InitDB

Command return :
The Designer Code for this migration file includes a snapshot of your current Code First model.
This snapshot is used to calculate the changes to your model when you scaffold the next migration.
If you make additional changes to your model that you want to include in this migration, then you can re-scaffold it by running 'Add-Migration Migrations-InitDB' again.

5. PM> Update-Database -Verbose

TIPS

• Hit "Tab" to get NuGut command completion.  e.g. "Ebalbe-M" > “Enable-Migrations”
• Connection String, Reference : http://msdn.microsoft.com/en-us/library/jj653752(v=vs.110).aspx
  1. Microsoft SQL Server Compact (SQL CE)
     <add name="CodeFirstContext" providerName="System.Data.SqlServerCe.4.0" connectionString="Data Source=|DataDirectory|localdb.sdf"/>
     OR
     <add name="CodeFirstContext" providerName="System.Data.SqlServerCe.4.0" connectionString="Data Source=E:\MSSQL-CE\localdb.sdf"/>

  2. Microsoft SQL Server 2012 Express LocalDB
     <add name="CodeFirstContext"
     providerName="System.Data.SqlClient" connectionString="Data Source=(LocalDB)\v11.0;AttachDbFileName=|DataDirectory|\DatabaseFileName.mdf;Integrated Security=True;MultipleActiveResultSets=True" />
     OR
     <add name="CodeFirstContext"
     providerName="System.Data.SqlClient" connectionString="Data Source=(LocalDB)\v11.0;AttachDbFileName=E:\MSSQL-LocalDB\DatabaseFileName.mdf;Integrated Security=True;MultipleActiveResultSets=True" />


• Note 1: If your StartUp project is web Project, DataDirectory folder is .\App_Data\
• Note 2: If want to see SQL CE in VS, need install entenstion "SQL Server Compact Toolbox".
• Note 3: SQL Compact 4 has full support for Entity Framework, Linq to SQL
• Note 4: SQL LocalDB default server is “(LocalDb)\v11.0”

ASP.NET - file path too long exception

Error message:

Server Error in '/' Application.

The specified path, file name, or both are too long. The fully qualified file name must be less than 260 characters, and the directory name must be less than 248 characters.

Description: An unhandled exception occurred during the execution of the current web request. Please review the stack trace for more information about the error and where it originated in the code.
Exception Details: System.IO.PathTooLongException: The specified path, file name, or both are too long. The fully qualified file name must be less than 260 characters, and the directory name must be less than 248 characters.
Source Error:

An unhandled exception was generated during the execution of the current web request. Information regarding the origin and location of the exception can be identified using the exception stack trace below.



Solution :

web.config append the following configuration at

<system.web>
…
<httpRuntime maxUrlLength="1000" relaxedUrlToFileSystemMapping="true" />
…
</system.web>

Umbraco v6.1.6 + YAF.NET 2.0 integration

Install memo.

1. Install Umbraco v6.1.6 (http://our.umbraco.org/contribute/releases/616) by default. appPool: .net v4
2. Use snippet 2 web.config and modify connection-strings.
3. Create a test page use asp:LoginView in template , (snipper 1)
4. Go to the member section and create 2 Membergroups : Registered and Administrators
5. Create a Membertype "Registered user" ,  add property "isApproved"  , type : True/False
6. Create a Member of the type "Registered user" and add it to the "Administrators" group and pick "isApproved" is true
7. Go to website and login using the user you just created and confirm that it works.
8. Create yaf folder under Umbraco root , download yaf source(https://github.com/YAFNET/YAFNET/releases/download/v2.0.0/YAF-v2.0.0-BIN.zip) and unzip under yaf folder.
9. Copy all YAF dll to Umbraco bin folder ~/bin/ , except CookComputing.XmlRpcV2.dll .
10. Create  folder yaf folder under umbraco bin folder , (~/bin/yaf/), move CookComputing.XmlRpcV2.dll from  ~/yaf/bin/CookComputing.XmlRpcV2.dll to ~/bin/yaf/CookComputing.XmlRpcV2.dll
11. Modify ~/yaf/app.confg (snippet 3)
12. restart iis
13. intall yaf vis {host}/yaf/install.aspx

snippet 1

snippet 2

<?xml version="1.0" encoding="utf-8"?>
<configuration>
  <configSections>
    <!-- YAF section Start-->
    <section name="rewriter" type="Intelligencia.UrlRewriter.Configuration.RewriterConfigurationSectionHandler, Intelligencia.UrlRewriter, Version=2.0.0.6, Culture=neutral, PublicKeyToken=0573f3650687980d" requirePermission="false" />
    <!-- YAF section End-->
    <section name="urlrewritingnet" restartOnExternalChanges="true" requirePermission="false" type="UrlRewritingNet.Configuration.UrlRewriteSection, UrlRewritingNet.UrlRewriter" />
    <section name="microsoft.scripting" type="Microsoft.Scripting.Hosting.Configuration.Section, Microsoft.Scripting, Version=1.0.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35" requirePermission="false" />
    <section name="clientDependency" type="ClientDependency.Core.Config.ClientDependencySection, ClientDependency.Core" requirePermission="false" />
    <section name="Examine" type="Examine.Config.ExamineSettings, Examine" requirePermission="false" />
    <section name="ExamineLuceneIndexSets" type="Examine.LuceneEngine.Config.IndexSets, Examine" requirePermission="false" />
    <section name="FileSystemProviders" type="Umbraco.Core.Configuration.FileSystemProvidersSection, Umbraco.Core" requirePermission="false" />
    <section name="log4net" type="log4net.Config.Log4NetConfigurationSectionHandler, log4net" requirePermission="false" />
    <section name="BaseRestExtensions" type="Umbraco.Web.BaseRest.Configuration.BaseRestSection, umbraco" requirePermission="false" />

    <sectionGroup name="system.web.webPages.razor" type="System.Web.WebPages.Razor.Configuration.RazorWebSectionGroup, System.Web.WebPages.Razor, Version=2.0.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35">
      <section name="host" type="System.Web.WebPages.Razor.Configuration.HostSection, System.Web.WebPages.Razor, Version=2.0.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35" requirePermission="false" />
      <section name="pages" type="System.Web.WebPages.Razor.Configuration.RazorPagesSection, System.Web.WebPages.Razor, Version=2.0.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35" requirePermission="false" />
    </sectionGroup>

  </configSections>

  <urlrewritingnet configSource="config\UrlRewriting.config" />
  <microsoft.scripting configSource="config\scripting.config" />
  <clientDependency configSource="config\ClientDependency.config" />
  <Examine configSource="config\ExamineSettings.config" />
  <ExamineLuceneIndexSets configSource="config\ExamineIndex.config" />
  <FileSystemProviders configSource="config\FileSystemProviders.config" />
  <log4net configSource="config\log4net.config" />
  <BaseRestExtensions configSource="config\BaseRestExtensions.config" />

  <appSettings file="yaf\app.config">
    <add key="umbracoConfigurationStatus" value="6.1.6" />
    <add key="umbracoReservedUrls" value="~/config/splashes/booting.aspx,~/install/default.aspx,~/config/splashes/noNodes.aspx,~/VSEnterpriseHelper.axd" />
    <add key="umbracoReservedPaths" value="~/umbraco,~/install/,~/yaf/" />
    <add key="umbracoContentXML" value="~/App_Data/umbraco.config" />
    <add key="umbracoStorageDirectory" value="~/App_Data" />
    <add key="umbracoPath" value="~/umbraco" />
    <add key="umbracoEnableStat" value="false" />
    <add key="umbracoHideTopLevelNodeFromPath" value="true" />
    <add key="umbracoEditXhtmlMode" value="true" />
    <add key="umbracoUseDirectoryUrls" value="false" />
    <add key="umbracoDebugMode" value="false" />
    <add key="umbracoTimeOutInMinutes" value="20" />
    <add key="umbracoVersionCheckPeriod" value="7" />
    <add key="umbracoDisableXsltExtensions" value="true" />
    <add key="umbracoDefaultUILanguage" value="en" />
    <add key="umbracoProfileUrl" value="profiler" />
    <add key="umbracoUseSSL" value="false" />
    <add key="umbracoUseMediumTrust" value="false" />
    <add key="umbracoContentXMLUseLocalTemp" value="false" />
    <add key="webpages:Enabled" value="false" />
    <add key="enableSimpleMembership" value="false" />
    <add key="autoFormsAuthentication" value="false" />
    <add key="log4net.Config" value="config\log4net.config" />
    <add key="YAF.ConfigPassword" value="" />
    <add key="YAF.BoardID" value="1" />
    <add key="YAF.EnableURLRewriting" value="false" />
    <add key="YAF.UrlRewritingFormat" value="standard" />
    <add key="YAF.URLRewritingMode" value="Translit" />
    <add key="YAF.UseSMTPSSL" value="false" />
    <add key="YAF.DatabaseObjectQualifier" value="yaf_" />
    <add key="YAF.DatabaseOwner" value="dbo" />
    <add key="YAF.ConnectionStringName" value="yafnet" />
    <add key="YAF.ProviderExceptionXML" value="ProviderExceptions.xml" />
    <add key="YAF.FileRoot" value="~/yaf" />
    <add key="YAF.AppRoot" value="~/yaf" />
    <add key="YAF.ProviderKeyType" value="System.Guid" />
    <add key="YAF.MobileUserAgents" value="iphone,ipad,midp,windows ce,windows phone,android,blackberry,opera mini,mobile,palm,portable,webos,htc,armv,lg/u,elaine,nokia,playstation,symbian,sonyericsson,mmp,hd_mini" />
    <add key="YAF.RadEditorSkin" value="Black" />
    <add key="YAF.UseRadEditorToolsFile" value="true" />
    <add key="YAF.RadEditorToolsFile" value="editors/radEditor/toolsFile.xml" />
    <add key="YAF.BaseUrlMask" value="http://localhost/" />
  </appSettings>

  <system.data>
    <DbProviderFactories>
      <remove invariant="System.Data.SqlServerCe.4.0" />
      <add name="Microsoft SQL Server Compact Data Provider 4.0" invariant="System.Data.SqlServerCe.4.0" description=".NET Framework Data Provider for Microsoft SQL Server Compact" type="System.Data.SqlServerCe.SqlCeProviderFactory, System.Data.SqlServerCe, Version=4.0.0.0, Culture=neutral, PublicKeyToken=89845dcd8080cc91" />
      <remove invariant="MySql.Data.MySqlClient" />
      <add name="MySQL Data Provider" invariant="MySql.Data.MySqlClient" description=".Net Framework Data Provider for MySQL" type="MySql.Data.MySqlClient.MySqlClientFactory, MySql.Data, Version=6.6.5.0, Culture=neutral, PublicKeyToken=c5687fc88969c44d" />
    </DbProviderFactories>
  </system.data>

  <system.net>
    <mailSettings>
      <!--<smtp>
        <network host="127.0.0.1" userName="username" password="password" />
      </smtp>-->
      <smtp deliveryMethod="SpecifiedPickupDirectory">
        <specifiedPickupDirectory pickupDirectoryLocation="C:\MailPickup" />
      </smtp>
    </mailSettings>
  </system.net>

  <connectionStrings>
    <remove name="umbracoDbDSN" />
    <add name="umbracoDbDSN" connectionString="server=.;database=PMS;user id=DEV;password=DEV" providerName="System.Data.SqlClient" />
    <!-- Important: If you're upgrading Umbraco, do not clear the connection string / provider name during your web.config merge. -->
    <!-- YAF connection Start-->
    <add name="yafnet" connectionString="Data Source=.;Initial Catalog=YAF;User ID=DEV;Password=DEV" providerName="System.Data.SqlClient" />
    <!-- YAF connection END -->
  </connectionStrings>

  <rewriter configSource="yaf\URLRewriter.config" />

  <system.web>
    <customErrors mode="RemoteOnly" />
    <!-- YAF suggestion
    <customErrors defaultRedirect="Error.aspx" mode="Off" />-->
    <trace enabled="false" requestLimit="10" pageOutput="false" traceMode="SortByTime" localOnly="true" />
    <sessionState mode="InProc" stateConnectionString="tcpip=127.0.0.1:42424" sqlConnectionString="data source=127.0.0.1;Trusted_Connection=yes" cookieless="false" timeout="20" />
    <globalization requestEncoding="UTF-8" responseEncoding="UTF-8" />
    <xhtmlConformance mode="Strict" />

    <httpRuntime requestValidationMode="2.0" enableVersionHeader="false" />

    <pages enableEventValidation="false">
      <!-- ASPNETAJAX -->
      <controls>
        <add tagPrefix="asp" namespace="System.Web.UI" assembly="System.Web.Extensions, Version=4.0.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35" />
        <add tagPrefix="umbraco" namespace="umbraco.presentation.templateControls" assembly="umbraco" />
        <add tagPrefix="asp" namespace="System.Web.UI.WebControls" assembly="System.Web.Extensions, Version=4.0.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35" />
        <!-- YAF -->
        <!-- Default: use non-dynamic (compiled classes) in YAF -->
        <add tagPrefix="YAF" namespace="YAF.Controls" assembly="YAF.Controls" />
        <add tagPrefix="YAF" namespace="YAF.Controls.Statistics" assembly="YAF.Controls" />
        <add tagPrefix="YAF" namespace="YAF.Classes" />
        <add tagPrefix="YAF" namespace="YAF" />
      </controls>
      <namespaces>
        <add namespace="YAF.Core" />
        <add namespace="YAF.Controls" />
        <add namespace="YAF.Utils" />
        <add namespace="YAF.Types.Interfaces" />
        <add namespace="YAF.Types" />
      </namespaces>
    </pages>
    <httpModules>
      <!-- URL REWRTIER -->
      <add name="UrlRewriteModule" type="UrlRewritingNet.Web.UrlRewriteModule, UrlRewritingNet.UrlRewriter" />
      <!-- UMBRACO -->
      <add name="UmbracoModule" type="Umbraco.Web.UmbracoModule,umbraco" />
      <!-- ASPNETAJAX -->
      <add name="ScriptModule" type="System.Web.Handlers.ScriptModule, System.Web.Extensions, Version=4.0.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35" />
      <!-- CLIENT DEPENDENCY -->
      <add name="ClientDependencyModule" type="ClientDependency.Core.Module.ClientDependencyModule, ClientDependency.Core" />
      <!-- YAF.Net Modules -->
      <add name="YafTaskModule" type="YAF.Core.YafTaskModule, YAF.Core" />
      <add name="UrlRewriter" type="Intelligencia.UrlRewriter.RewriterHttpModule,Intelligencia.UrlRewriter" />
    </httpModules>
    <httpHandlers>
      <remove verb="*" path="*.asmx" />
      <!-- ASPNETAJAX -->
      <add verb="*" path="*.asmx" type="System.Web.Script.Services.ScriptHandlerFactory, System.Web.Extensions, Version=4.0.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35" validate="false" />
      <add verb="*" path="*_AppService.axd" type="System.Web.Script.Services.ScriptHandlerFactory, System.Web.Extensions, Version=4.0.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35" validate="false" />
      <add verb="GET,HEAD" path="ScriptResource.axd" type="System.Web.Handlers.ScriptResourceHandler, System.Web.Extensions, Version=4.0.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35" validate="false" />
      <!-- UMBRACO CHANNELS -->
      <add verb="*" path="umbraco/channels.aspx" type="umbraco.presentation.channels.api, umbraco" />
      <add verb="*" path="umbraco/channels/word.aspx" type="umbraco.presentation.channels.wordApi, umbraco" />
      <!-- CLIENT DEPENDENCY -->
      <add verb="*" path="DependencyHandler.axd" type="ClientDependency.Core.CompositeFiles.CompositeDependencyHandler, ClientDependency.Core " />
      <!-- SPELL CHECKER -->
      <add verb="GET,HEAD,POST" path="GoogleSpellChecker.ashx" type="umbraco.presentation.umbraco_client.tinymce3.plugins.spellchecker.GoogleSpellChecker,umbraco" />
      <!-- YAF.Net HTTP handlers -->
      <add verb="GET" path="Resource.ashx" type="YAF.YafResourceHandler, YAF" />
    </httpHandlers>

    <compilation defaultLanguage="c#" debug="false" batch="false" targetFramework="4.0">
      <assemblies>
        <!-- YAF.Net definitions -->
        <add assembly="System.Data.Linq, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089" />
        <add assembly="System.ServiceModel.Web, Version=4.0.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35" />
        <add assembly="System.Windows.Forms, Version=4.0.0.0, Culture=neutral, PublicKeyToken=B77A5C561934E089" />
        <!-- ASP.NET 4.0 Assemblies -->
        <add assembly="System.Design, Version=4.0.0.0, Culture=neutral, PublicKeyToken=B03F5F7F11D50A3A" />
        <add assembly="System.Core, Version=4.0.0.0, Culture=neutral, PublicKeyToken=B77A5C561934E089" />
        <add assembly="System.Web.Extensions, Version=4.0.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35" />
        <add assembly="System.Xml.Linq, Version=4.0.0.0, Culture=neutral, PublicKeyToken=B77A5C561934E089" />
        <add assembly="System.Data.DataSetExtensions, Version=4.0.0.0, Culture=neutral, PublicKeyToken=B77A5C561934E089" />
        <add assembly="System.Web.Extensions.Design, Version=4.0.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35" />
        <add assembly="System.Web.Abstractions, Version=4.0.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35" />
        <add assembly="System.Web.Helpers, Version=1.0.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35" />
        <add assembly="System.Web.Routing, Version=4.0.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35" />
        <add assembly="System.Web.Mvc, Version=4.0.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35" />
        <add assembly="System.Web.WebPages, Version=2.0.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35" />
      </assemblies>

      <buildProviders>
        <add extension=".cshtml" type="umbraco.MacroEngines.RazorBuildProvider, umbraco.MacroEngines" />
        <add extension=".vbhtml" type="umbraco.MacroEngines.RazorBuildProvider, umbraco.MacroEngines" />
        <add extension=".razor" type="umbraco.MacroEngines.RazorBuildProvider, umbraco.MacroEngines" />
      </buildProviders>
    </compilation>

    <authentication mode="Forms">
      <forms name="yourAuthCookie" loginUrl="login.aspx" protection="All" path="/" />
    </authentication>
    <authorization>
      <allow users="?" />
    </authorization>
    <!-- Membership Provider -->
    <membership defaultProvider="UmbracoMembershipProvider" userIsOnlineTimeWindow="15">
      <providers>
        <clear />
        <add name="UmbracoMembershipProvider" type="umbraco.providers.members.UmbracoMembershipProvider" enablePasswordRetrieval="false" enablePasswordReset="false" requiresQuestionAndAnswer="false" defaultMemberTypeAlias="RegisteredUser" passwordFormat="Hashed" umbracoApprovePropertyTypeAlias="isApproved" />
        <add name="UsersMembershipProvider" type="umbraco.providers.UsersMembershipProvider" enablePasswordRetrieval="false" enablePasswordReset="false" requiresQuestionAndAnswer="false" passwordFormat="Hashed" />
      </providers>
    </membership>
    <!-- added by NH to support membership providers in access layer -->
    <roleManager enabled="true" defaultProvider="UmbracoRoleProvider">
      <providers>
        <clear />
        <add name="UmbracoRoleProvider" type="umbraco.providers.members.UmbracoRoleProvider" />
      </providers>
    </roleManager>
    <!-- Yaf.Net profile -->
    <profile enabled="True" defaultProvider="YafProfileProvider" inherits="YAF.Utils.YafUserProfile">
      <providers>
        <clear />
        <add connectionStringName="yafnet" applicationName="YetAnotherForum" name="YafProfileProvider" type="YAF.Providers.Profile.YafProfileProvider" />
      </providers>
    </profile>
  </system.web>

  <!-- ASPNETAJAX -->
  <system.web.extensions>
    <scripting>
      <scriptResourceHandler enableCompression="true" enableCaching="true" />
    </scripting>
  </system.web.extensions>

  <system.webServer>
    <validation validateIntegratedModeConfiguration="false" />
    <modules runAllManagedModulesForAllRequests="true">
      <!-- YAF.Net -->
      <remove name="YafTaskModule" />
      <remove name="UrlRewriter" />
      <add name="YafTaskModule" type="YAF.Core.YafTaskModule, YAF.Core" preCondition="managedHandler" />
      <add name="UrlRewriter" type="Intelligencia.UrlRewriter.RewriterHttpModule,Intelligencia.UrlRewriter"
           preCondition="managedHandler" />

      <!-- Umbraco -->
      <remove name="UrlRewriteModule" />
      <add name="UrlRewriteModule" type="UrlRewritingNet.Web.UrlRewriteModule, UrlRewritingNet.UrlRewriter" />

      <remove name="UmbracoModule" />
      <add name="UmbracoModule" type="Umbraco.Web.UmbracoModule,umbraco" />

      <remove name="ScriptModule" />
      <add name="ScriptModule" preCondition="managedHandler" type="System.Web.Handlers.ScriptModule, System.Web.Extensions, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35" />

      <remove name="ClientDependencyModule" />
      <add name="ClientDependencyModule" type="ClientDependency.Core.Module.ClientDependencyModule, ClientDependency.Core" />

      <!-- Needed for login/membership to work on homepage (as per http://stackoverflow.com/questions/218057/httpcontext-current-session-is-null-when-routing-requests) -->
      <remove name="FormsAuthentication" />
      <add name="FormsAuthentication" type="System.Web.Security.FormsAuthenticationModule" />
    </modules>

    <handlers accessPolicy="Read, Write, Script, Execute">
      <!-- Yaf.Net -->
      <add name="YafHandler" preCondition="integratedMode" verb="GET" path="Resource.ashx"
                type="YAF.YafResourceHandler, YAF" />

      <!-- Umbraco -->
      <remove name="WebServiceHandlerFactory-Integrated" />
      <remove name="ScriptHandlerFactory" />
      <remove name="ScriptHandlerFactoryAppServices" />
      <remove name="ScriptResource" />
      <remove name="Channels" />
      <remove name="Channels_Word" />
      <remove name="ClientDependency" />
      <remove name="SpellChecker" />

      <add name="ScriptHandlerFactory" verb="*" path="*.asmx" preCondition="integratedMode" type="System.Web.Script.Services.ScriptHandlerFactory, System.Web.Extensions, Version=4.0.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35" />
      <add name="ScriptHandlerFactoryAppServices" verb="*" path="*_AppService.axd" preCondition="integratedMode" type="System.Web.Script.Services.ScriptHandlerFactory, System.Web.Extensions, Version=4.0.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35" />
      <add name="ScriptResource" verb="GET,HEAD" path="ScriptResource.axd" preCondition="integratedMode" type="System.Web.Handlers.ScriptResourceHandler, System.Web.Extensions, Version=4.0.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35" />
      <add verb="*" name="Channels" preCondition="integratedMode" path="umbraco/channels.aspx" type="umbraco.presentation.channels.api, umbraco" />
      <add verb="*" name="Channels_Word" preCondition="integratedMode" path="umbraco/channels/word.aspx" type="umbraco.presentation.channels.wordApi, umbraco" />
      <add verb="*" name="ClientDependency" preCondition="integratedMode" path="DependencyHandler.axd" type="ClientDependency.Core.CompositeFiles.CompositeDependencyHandler, ClientDependency.Core " />
      <add verb="GET,HEAD,POST" preCondition="integratedMode" name="SpellChecker" path="GoogleSpellChecker.ashx" type="umbraco.presentation.umbraco_client.tinymce3.plugins.spellchecker.GoogleSpellChecker,umbraco" />
    </handlers>

    <!-- Adobe AIR mime type -->
    <staticContent>
      <remove fileExtension=".air" />
      <mimeMap fileExtension=".air" mimeType="application/vnd.adobe.air-application-installer-package+zip" />
    </staticContent>

    <!-- Ensure the powered by header is not returned -->
    <httpProtocol>
      <customHeaders>
        <remove name="X-Powered-By" />
      </customHeaders>
    </httpProtocol>

  </system.webServer>

  <system.codedom>
    <compilers>
      <compiler language="c#;cs;csharp" extension=".cs" type="Microsoft.CSharp.CSharpCodeProvider,System, Version=2.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089" warningLevel="4">
        <providerOption name="CompilerVersion" value="v4.0" />
        <providerOption name="WarnAsError" value="false" />
      </compiler>
    </compilers>
  </system.codedom>

  <runtime>
    <assemblyBinding xmlns="urn:schemas-microsoft-com:asm.v1">

      <!-- Old asp.net ajax assembly bindings -->
      <dependentAssembly>
        <assemblyIdentity name="System.Web.Extensions" publicKeyToken="31bf3856ad364e35" />
        <bindingRedirect oldVersion="1.0.0.0-1.1.0.0" newVersion="4.0.0.0" />
      </dependentAssembly>
      <dependentAssembly>
        <assemblyIdentity name="System.Web.Extensions.Design" publicKeyToken="31bf3856ad364e35" />
        <bindingRedirect oldVersion="1.0.0.0-1.1.0.0" newVersion="4.0.0.0" />
      </dependentAssembly>

      <!-- Ensure correct version of MVC -->
      <dependentAssembly>
        <assemblyIdentity name="System.Web.Helpers" publicKeyToken="31bf3856ad364e35" />
        <bindingRedirect oldVersion="1.0.0.0-2.0.0.0" newVersion="2.0.0.0" />
      </dependentAssembly>
      <dependentAssembly>
        <assemblyIdentity name="System.Web.Mvc" publicKeyToken="31bf3856ad364e35" />
        <bindingRedirect oldVersion="1.0.0.0-4.0.0.0" newVersion="4.0.0.0" />
      </dependentAssembly>
      <dependentAssembly>
        <assemblyIdentity name="System.Web.WebPages" publicKeyToken="31bf3856ad364e35" />
        <bindingRedirect oldVersion="1.0.0.0-2.0.0.0" newVersion="2.0.0.0" />
      </dependentAssembly>
      <dependentAssembly>
        <assemblyIdentity name="System.Web.WebPages.Razor" publicKeyToken="31bf3856ad364e35" />
        <bindingRedirect oldVersion="1.0.0.0-2.0.0.0" newVersion="2.0.0.0" />
      </dependentAssembly>

      <!-- Ensure correct version of HtmlAgilityPack -->
      <dependentAssembly>
        <assemblyIdentity name="HtmlAgilityPack" publicKeyToken="bd319b19eaf3b43a" culture="neutral" />
        <bindingRedirect oldVersion="1.4.5.0-1.4.6.0" newVersion="1.4.6.0" />
      </dependentAssembly>

      <!-- ref : http://our.umbraco.org/forum/core/general/6193-Update-CookComputingXmlRpcV2dll?p=1 -->
      <dependentAssembly>
        <assemblyIdentity name="CookComputing.XmlRpcV2" publicKeyToken="a7d6e17aa302004d" />
        <codeBase version="2.5.0.0" href="bin\CookComputing.XmlRpcV2.dll" />
        <codeBase version="3.0.0.0" href="bin\YAF\CookComputing.XmlRpcV2.dll" />
      </dependentAssembly>
    </assemblyBinding>
  </runtime>

  <system.web.webPages.razor>
    <host factoryType="umbraco.MacroEngines.RazorUmbracoFactory, umbraco.MacroEngines" />
    <pages pageBaseType="umbraco.MacroEngines.DynamicNodeContext">
      <namespaces>
        <add namespace="Microsoft.Web.Helpers" />
        <add namespace="umbraco" />
        <add namespace="Examine" />
      </namespaces>
    </pages>
  </system.web.webPages.razor>

</configuration>

snippet 3

<add key="YAF.FileRoot" value="~/yaf" />
<add key="YAF.AppRoot" value="~/yaf" />
<add key="YAF.ProviderKeyType" value="System.Int32" />
